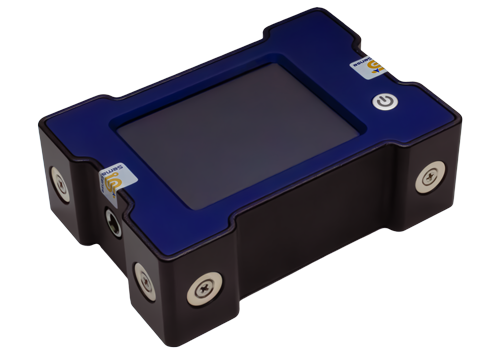

PRISTINE PRO

The Pristine Pro is a high-precision dual-axis digital inclinometer designed for demanding industrial applications. Within the ±5° range, it achieves an accuracy of 0.003°, and 0.017° across the full ±90° range. Integrated temperature compensation limits temperature-induced error to below 0.030° within 0°C to +50°C. Advanced signal processing ensures stable and reliable readings.

With 3400 mAh lithium battery and intelligent power management, the device operates for more than 24 hours on a single charge. A 2.8-inch touchscreen and user-friendly interface allow easy configuration and unit selection.

FEATURES

  • Dual-axis measurement within the ±90° range
  • Accuracy:
    • 0.003° within ±5°
    • 0.017° outside ±5° (up to ±90°)
  • Resolution: 0.001°
  • Advanced 3D acceleration processing

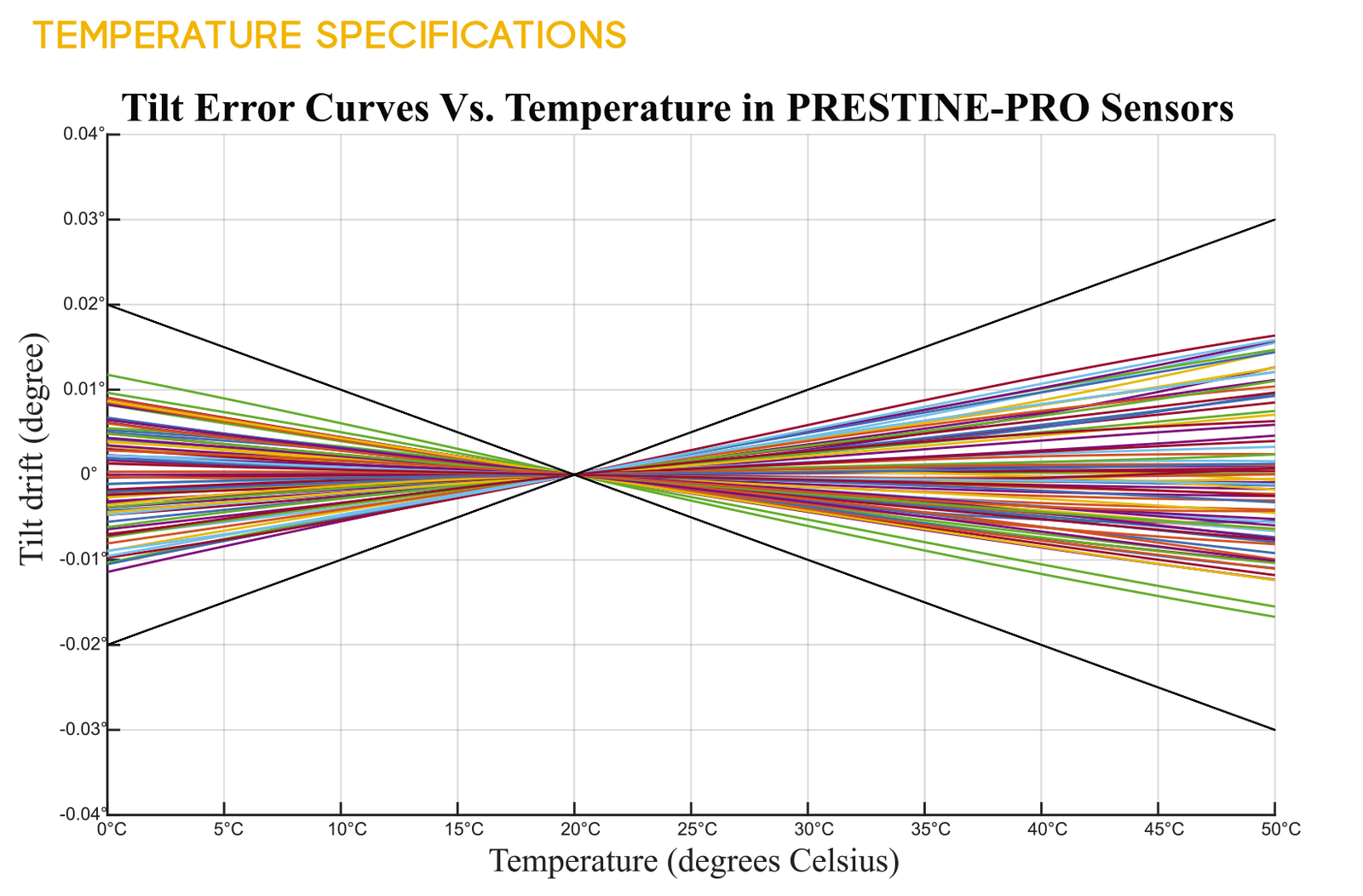

  • Temperature compensation from 0°C to +50°C
  • Maximum temperature error: 0.030°
  • User calibration capability.
  • Battery life of up to 24 hours.
  • 2.8-inch touchscreen display Connectivity with HORIZON sensors
  • MEMS sensor technology

APPLICATIONS

  • Precision alignment and leveling of CNC machines
  • Alignment and calibration of industrial robots
  • Flatness measurement of precision-machined surfaces (meshing method)
  • Alignment and calibration of multi-axis positioning tables
  • Installation and alignment of antennas, transmitters, and communication equipment
  • Monitoring and alignment of large mechanical structures
  • Pipeline alignment and deformation measurement
  • Rail and track installation alignment
  • Calibration of high-precision medical and laboratory equipment

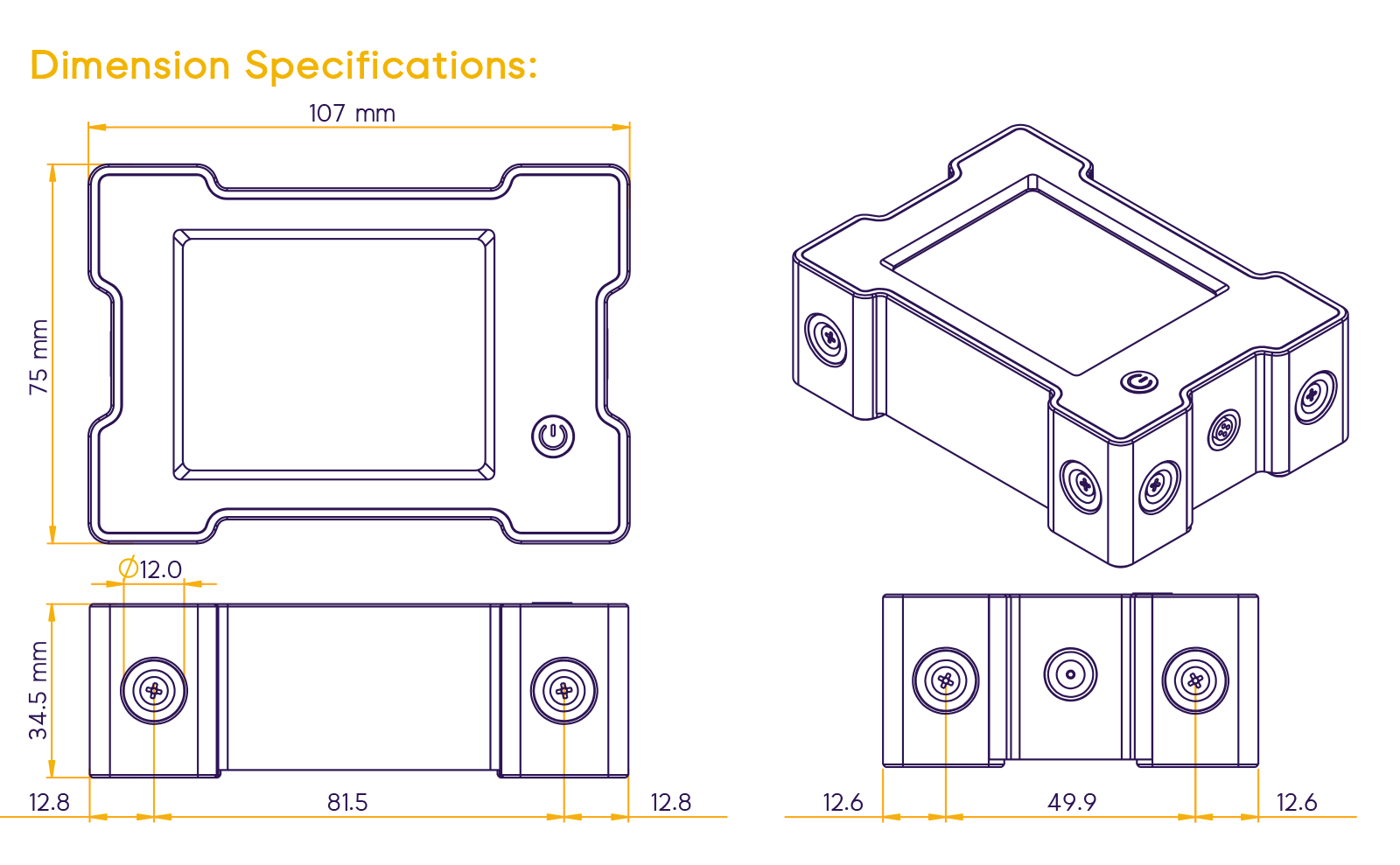

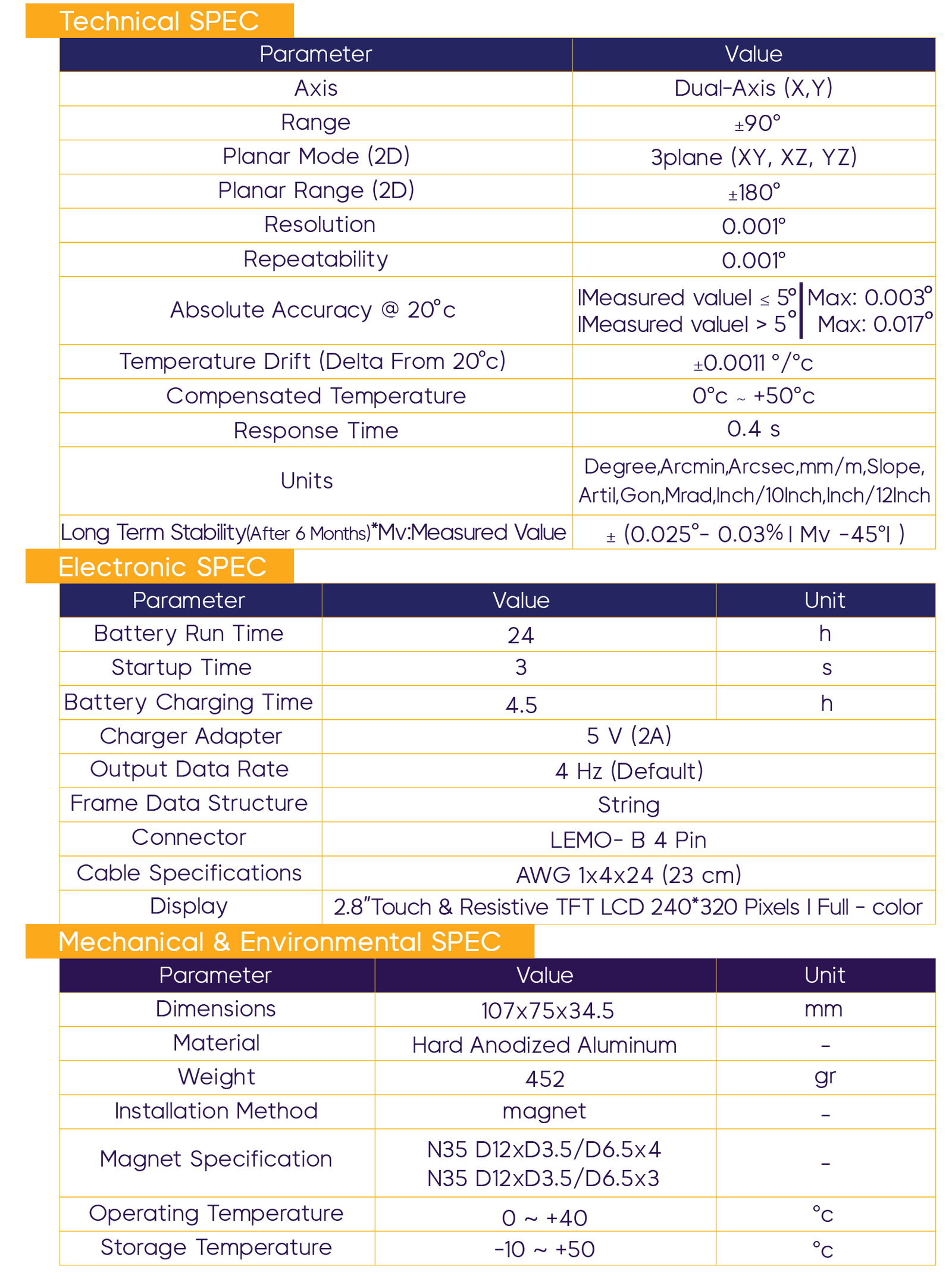

TECHNICAL INFORMATION

Downlowd Data Sheet
