The HORIZON PICO is a compact dual-axis inclinometer built on advanced MEMS linear accelerometer technology. It measures angles relative to the local horizontal with an accuracy better than 0.02° across the LS and FS ranges.
With an internal temperature sensor and advanced thermal calibration, it provides excellent thermal stability, maintaining a maximum temperature error of just 0.030° over the −30°C to +70°C operating range.
Engineered for demanding industrial environments, the HORIZON PICO offers strong resistance to electromagnetic interference, shock, and vibration, ensuring long-term reliability.
Designed for non-accelerating platforms, its compact form factor makes it particularly suitable for robotics and industrial systems. Using 3D acceleration processing, it maintains consistent accuracy throughout the full measurement range.
It integrates easily into monitoring systems and provides continuous angle and inclination data, making it a practical solution for a wide range of technical applications.
The HORIZON PICO is widely used in drilling and cutting equipment, construction, mining, power generation, oil and gas, telecommunications, power transmission, geology, and other fields requiring precise inclination and structural orientation monitoring.

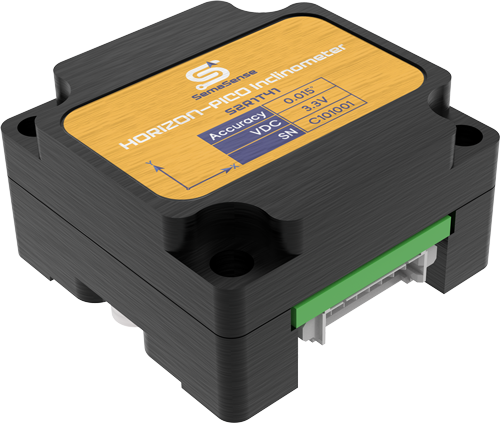

HORIZON PICO

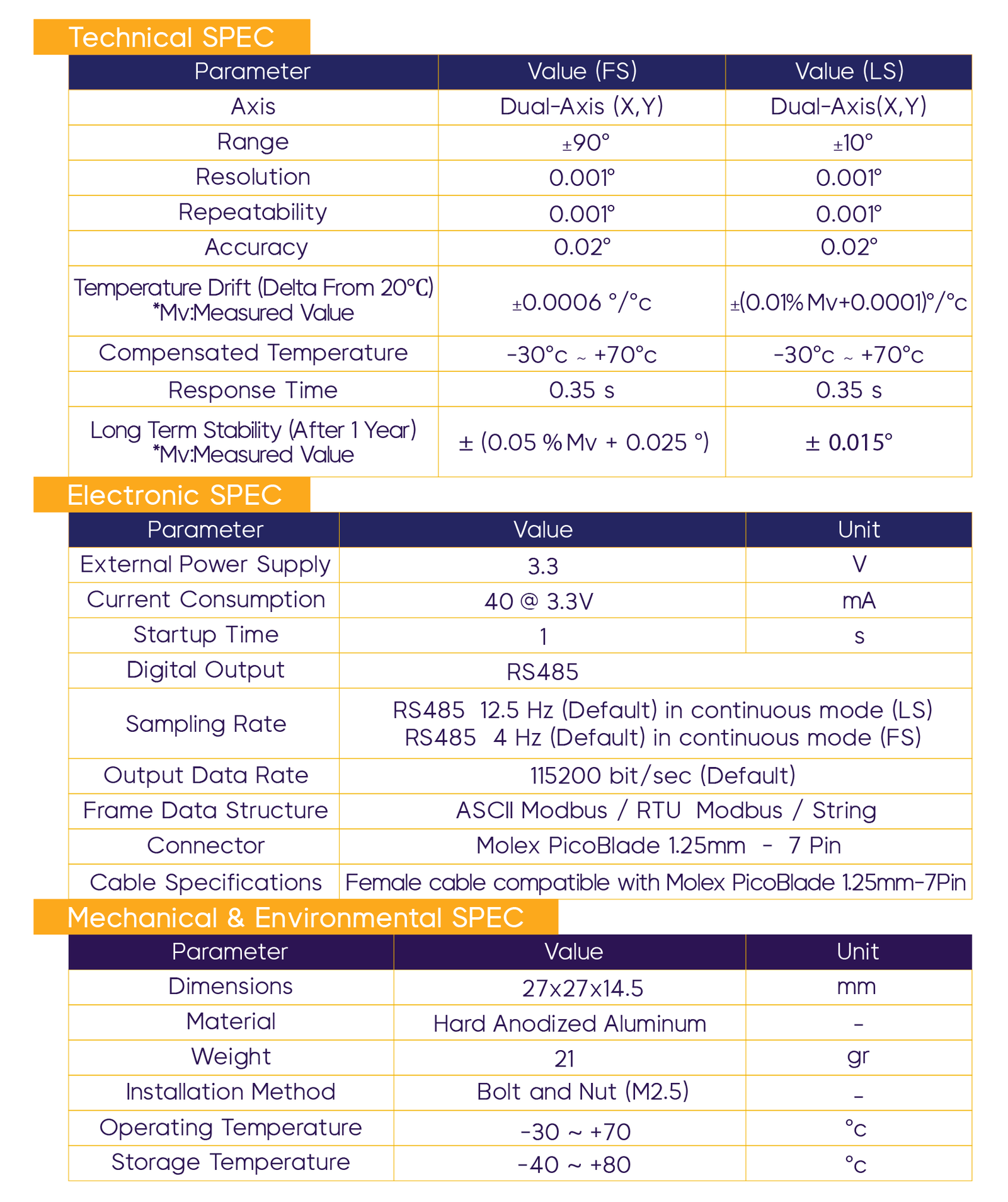

FEATURES
- Dual-axis measurement over the full range: LS: ±10 , FS: ±90
- Absolute accuracy: 0.02
- Resolution: 0.001
- Maintains accuracy across the full range using 3D acceleration data processing

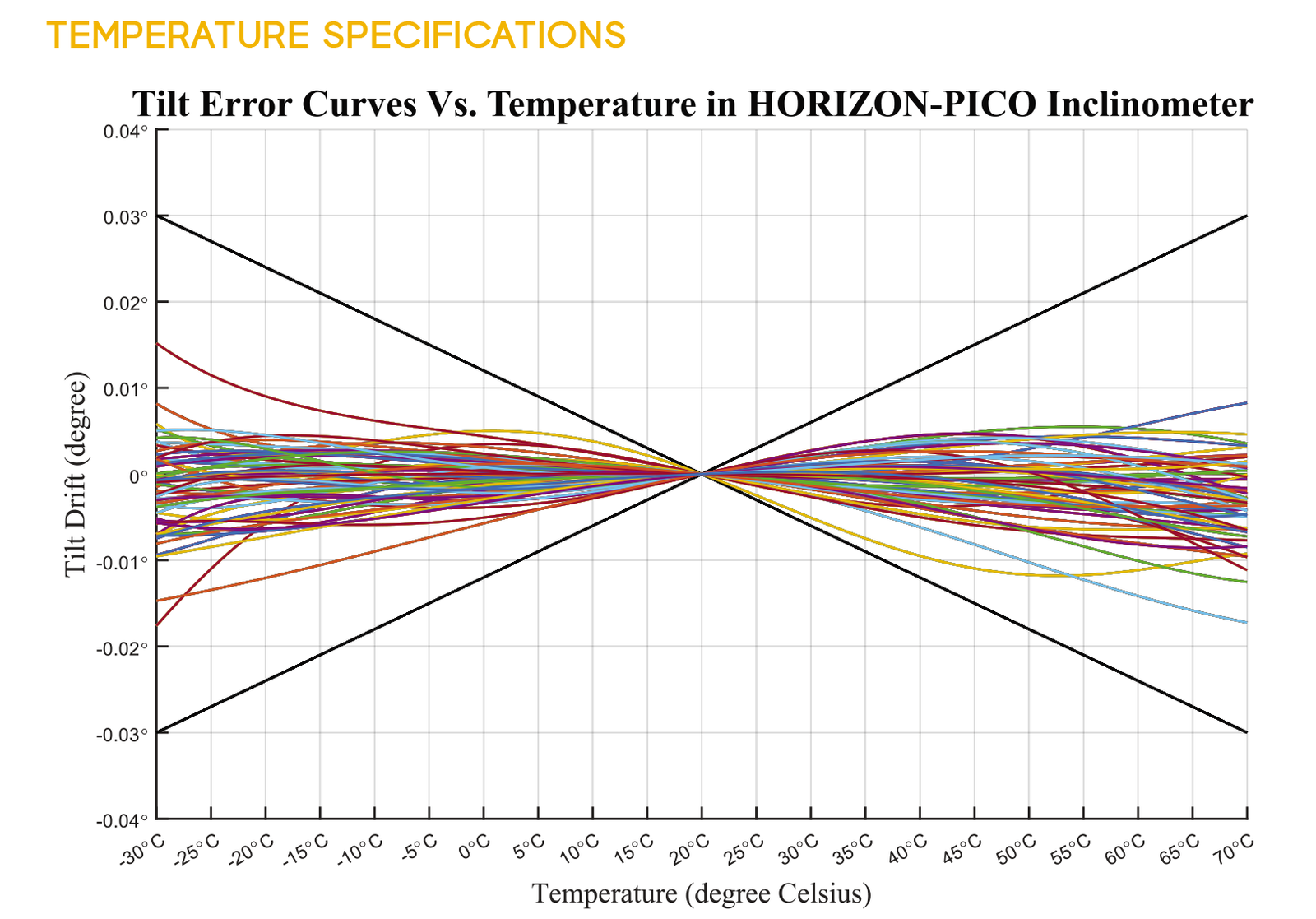

- Temperature compensation from –30C to +70C
- Maximum temperature error: 0.030 over the –30C to +70C range MEMS-based sensing technology
- Supports RS485 communication interface
APPLICATIONS
- Monitoring and measuring the inclination of surfaces with difficult access relative to the local horizon or other reference surfaces.
- Monitoring the angle of axes in industrial robots, drilling tools and cutting tools
- Adjusting the installation angle of radio transmitters and receivers relative to the local horizon.
- Monitoring and leveling multi-degree-of-freedom tables.
- Installation and monitoring of rail structures.
